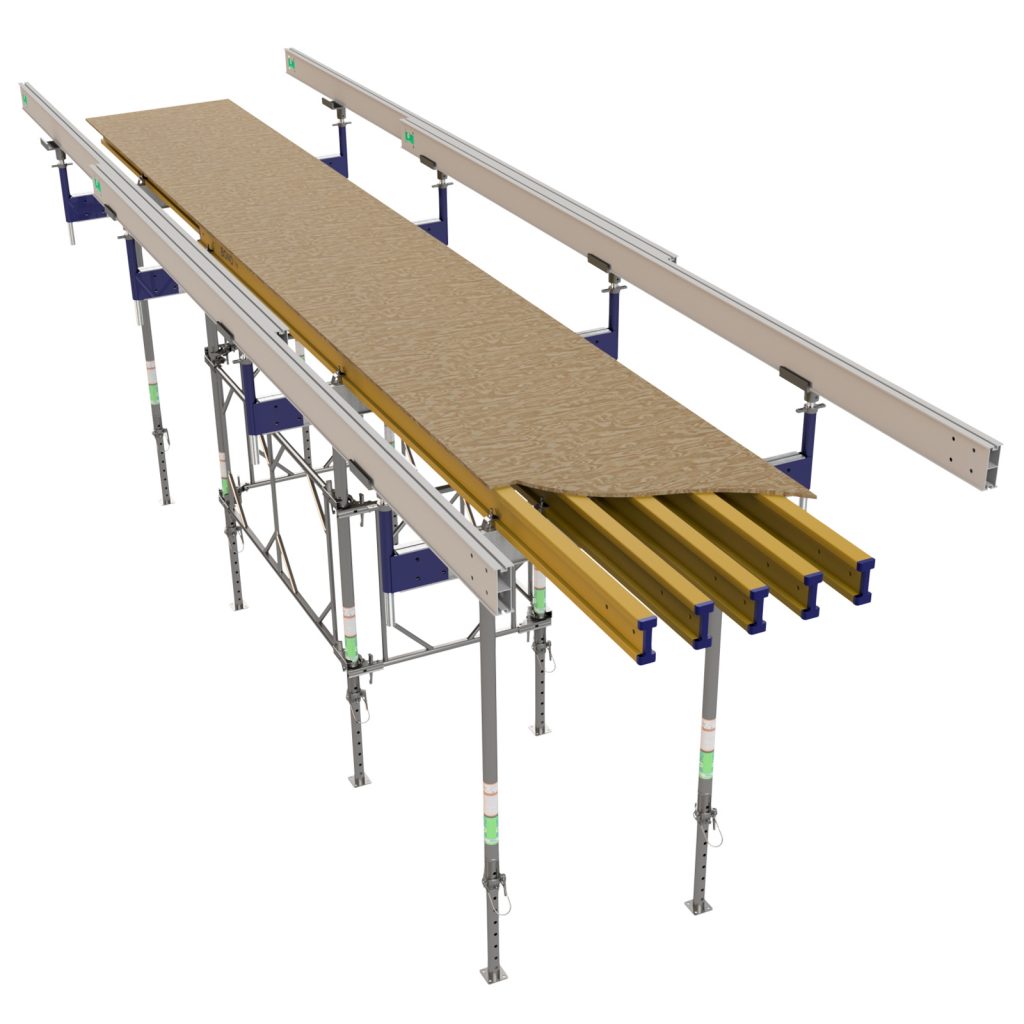

Beam Bottom
Using H20 joists and aluminum stringers, BOND can build saddle beam tables up to 30′ long using standard components. Tables can be assembled or made loose pending jobsite uses.

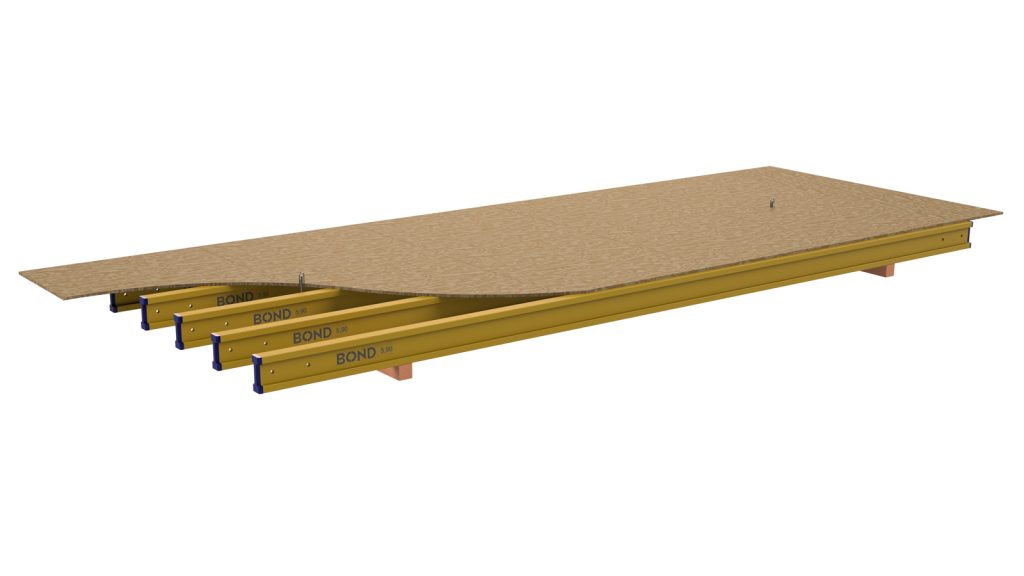

Slab Table
Pending the width of your parking garage, BOND can provide H20 joists to span parking garage bays 24′ or less. Custom longer length H20’s can be provided with lead time if your project has center bays over 24′. The H20 joist are strong versatile components that allow you to build 8′ wide deck panels that are the full width of the bay, saving on labor and material costs.
Stringer Beam & H20 Girder heights
In order to make our loose and assembled systems more user friendly and have more capabilities we designed our box beam stringer to the same size as the H20 beam. This allows our systems to have more possibilities in our designs and applications in the field.
Anchor
Deck anchor retainers can be provided that hold the deck panels in the poured position while beam forms are being stripped and cycled to the next pour.
