Customizable Table

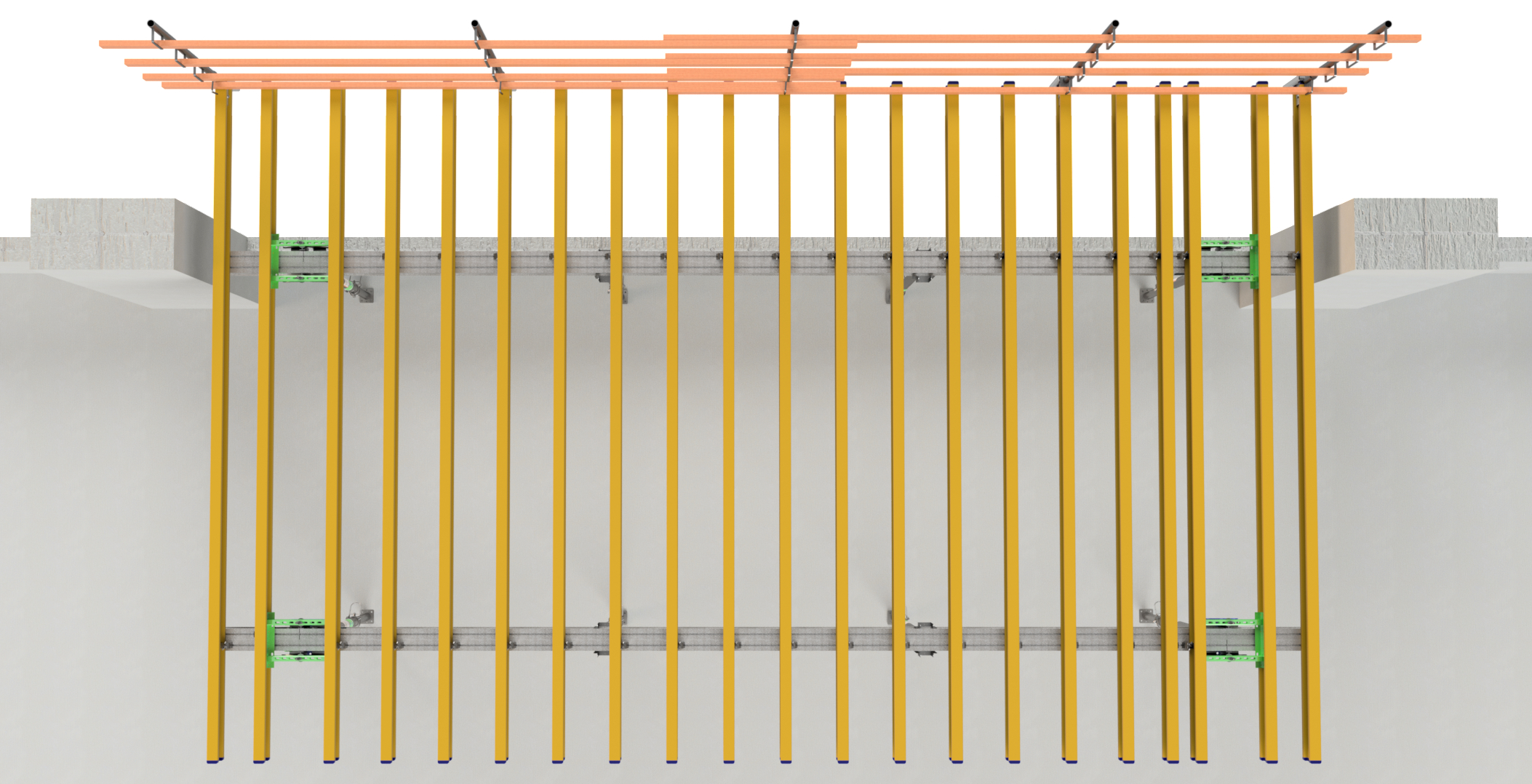

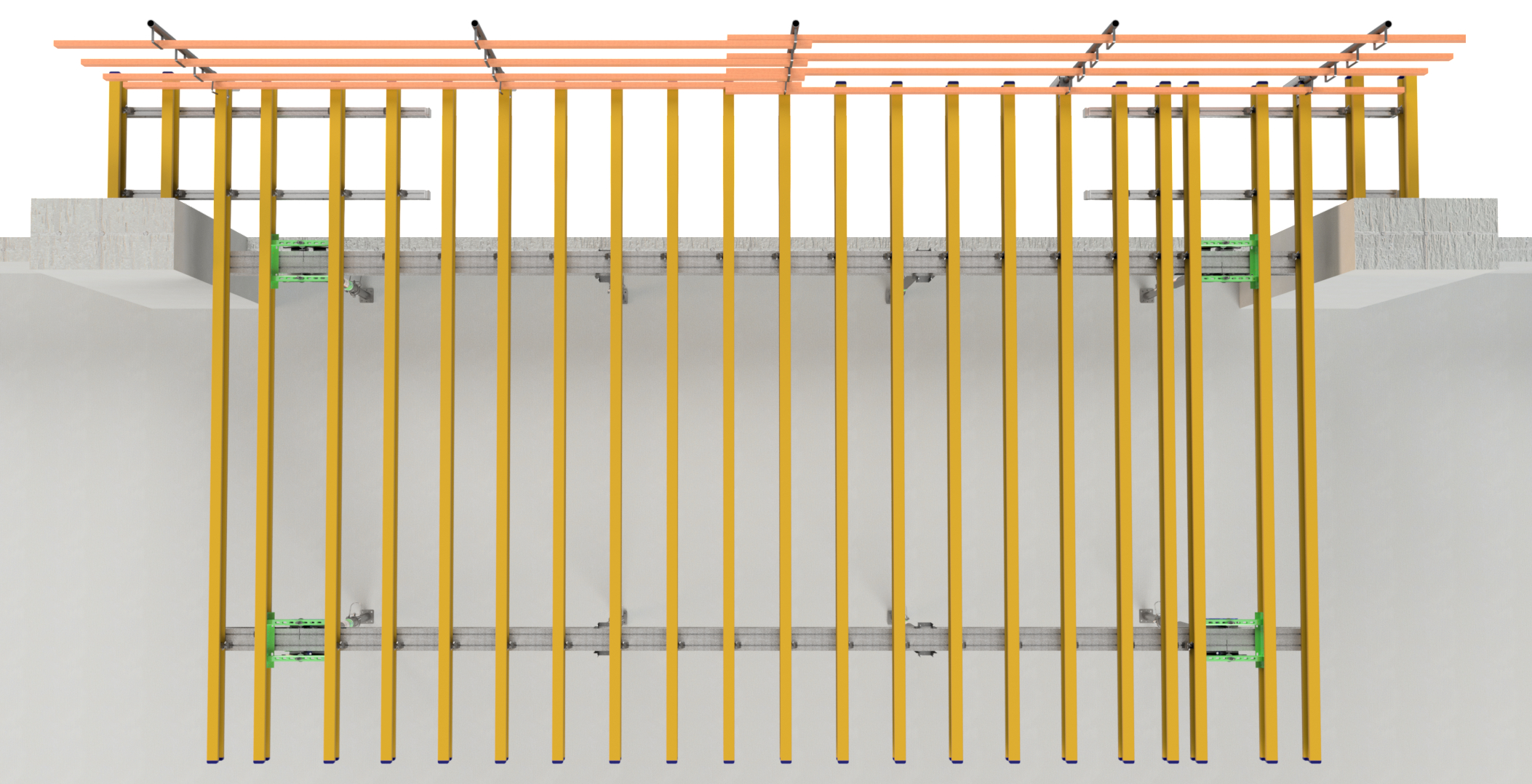

Customizable for Any Project – Swivel MAX Tables can be built to standard rectangular configurations for bays between columns or uniquely shaped to accommodate varying slab thicknesses and project demands.
Fast Assembly Times – Compared to other table systems, like trusses, Swivel MAX Tables can be built much faster with jigs. These tables need much less assembly space and take up less room after being built due to having the ability to stack on top of each other.
Built for Convenience

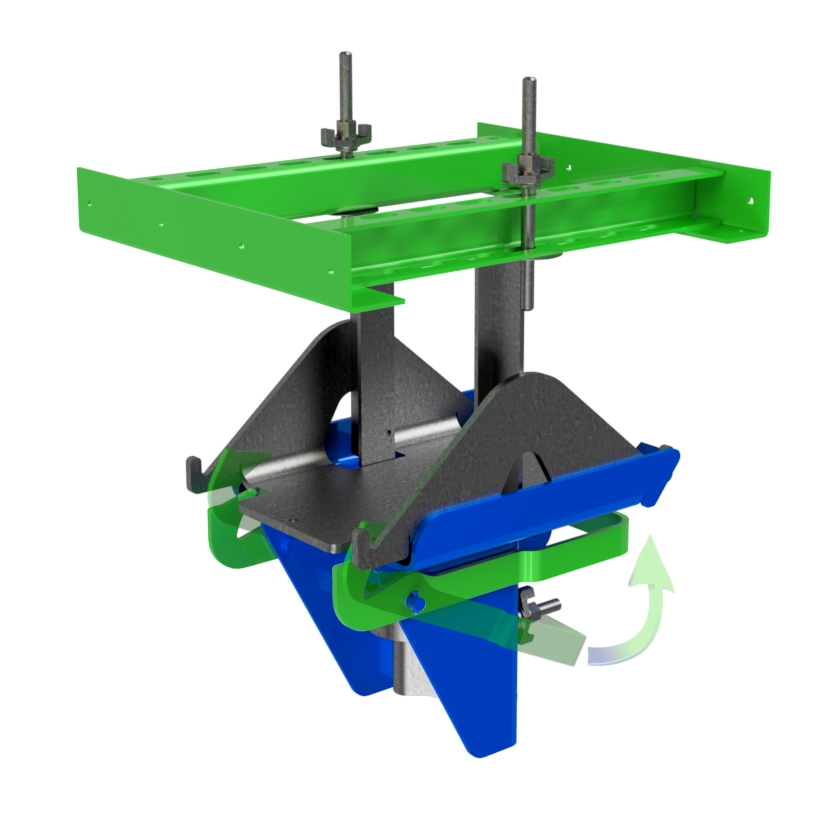

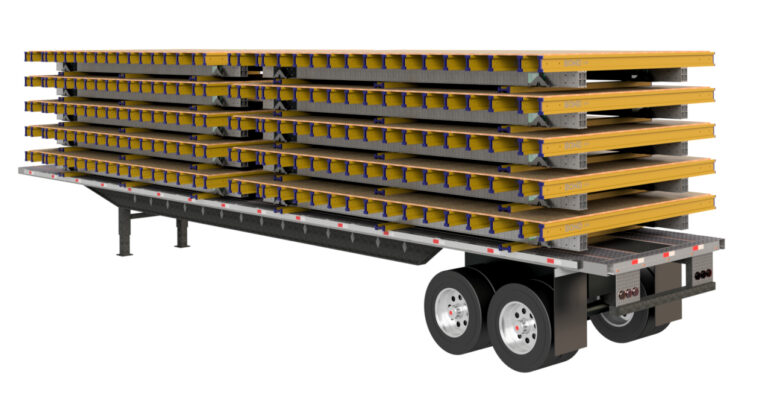

Lightweight, Compact, Stackable Design – The unique three-piece integrated swivel unit allows for a compact, stackable assembly. The top two components are installed during table fabrication; the lower swivel unit is added only when the table is positioned on-site, which keeping the table lightweight—saving time, space, and labor.
Fabrication – Tables can be fabricated on-site or pre-assembled in the customer’s yard and delivered to the jobsite depending on their size and project timeline.

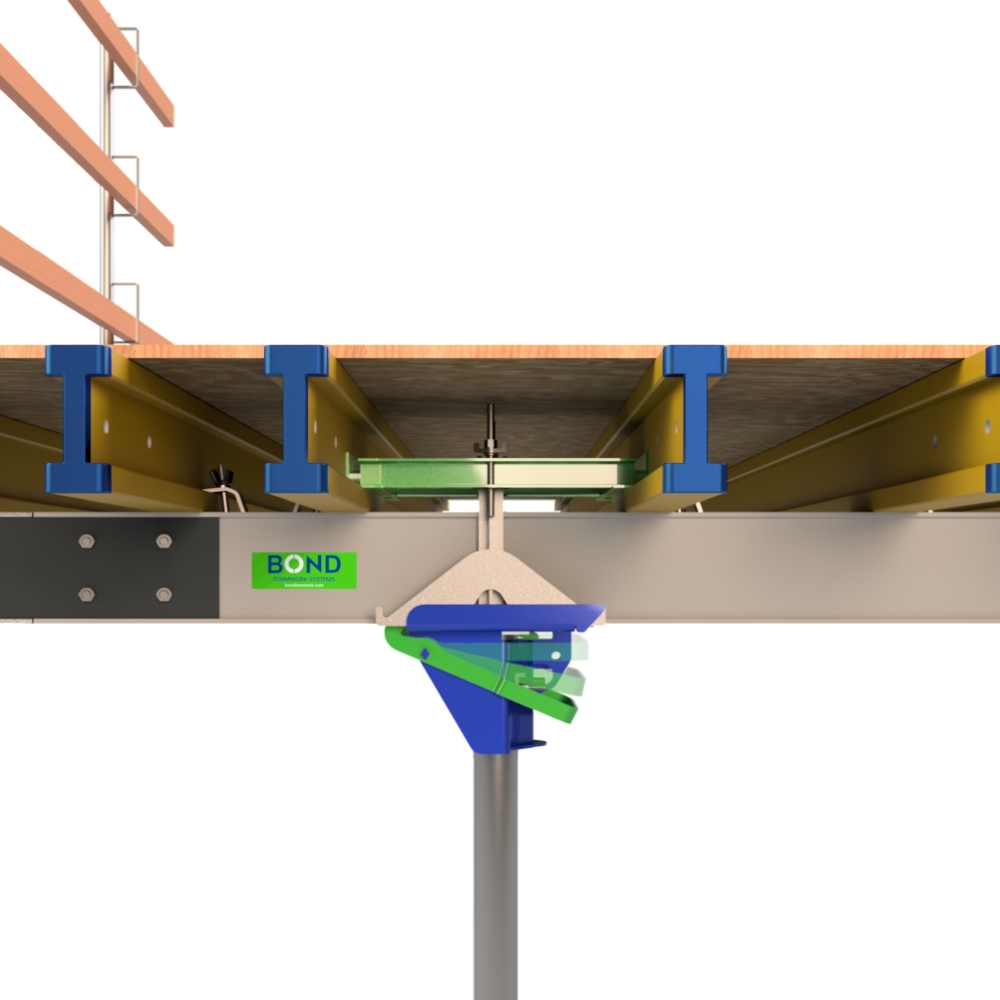

Flexible Hinging Leg

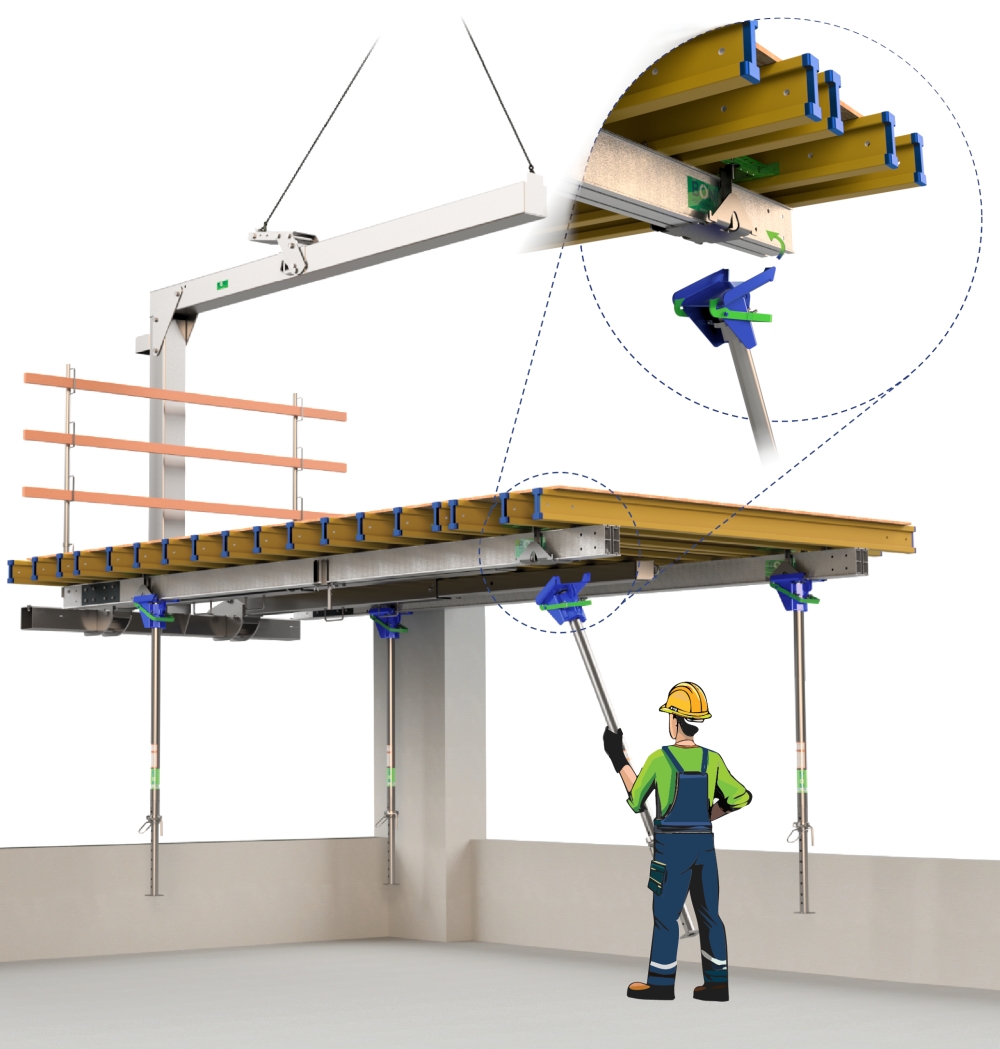

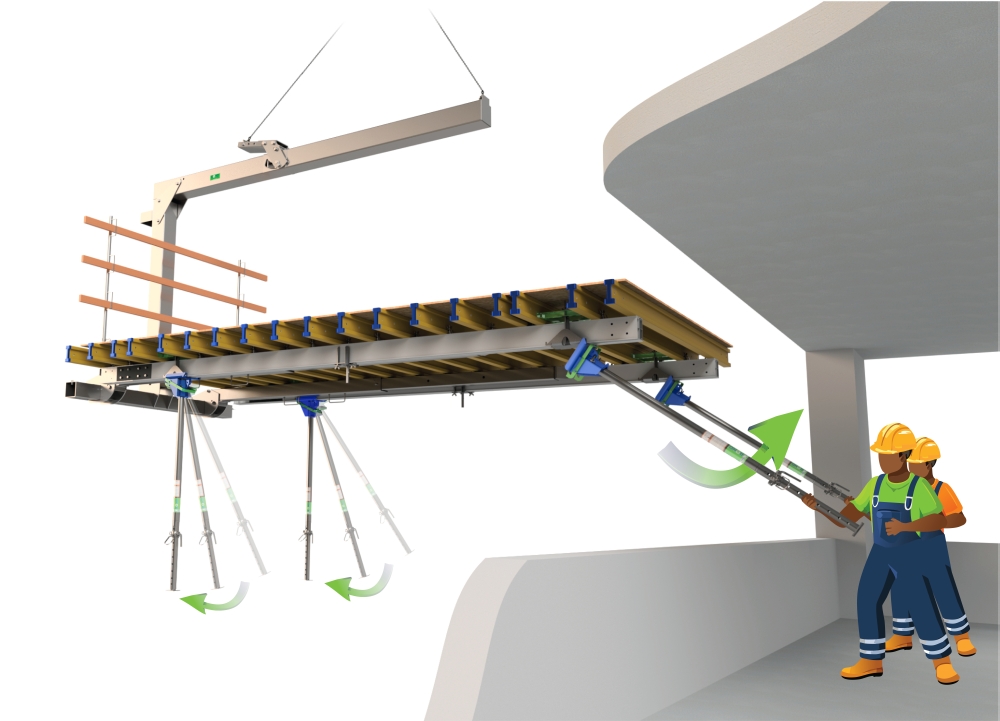

Hinging Props for Safety – These hinging props allow for safe and efficient table movement over bumper walls, handrails, and other obstacles without removal of existing posts. This allows a smooth transition outside of the building with no need for an outrigger platform.

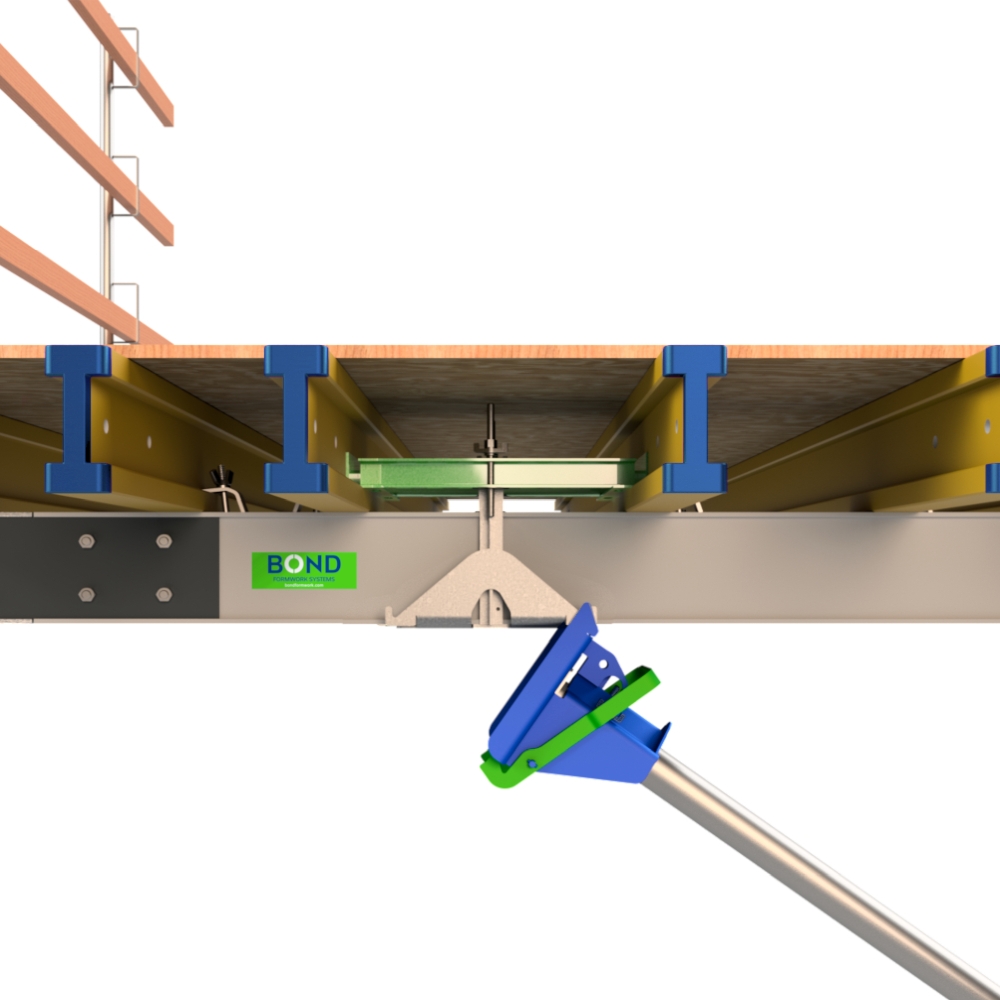

Choices for Your Hinge – The folding direction of the prop is determined by the orientation of the prop handle. The direction of the hinge can easily be changed since it is the lower component installed on the table after assembly. This gives the contractor more flexibility when floors change while moving up a building.
Interchangeable Prop – When floors drastically change in height and new prop sizes are needed, the Lower Swivel MAX allows for quick exchanges of props without needing bolts or disassembling the table. This takes up less crane time and ensures a smoother transition between floors.
Engineered for Mobility

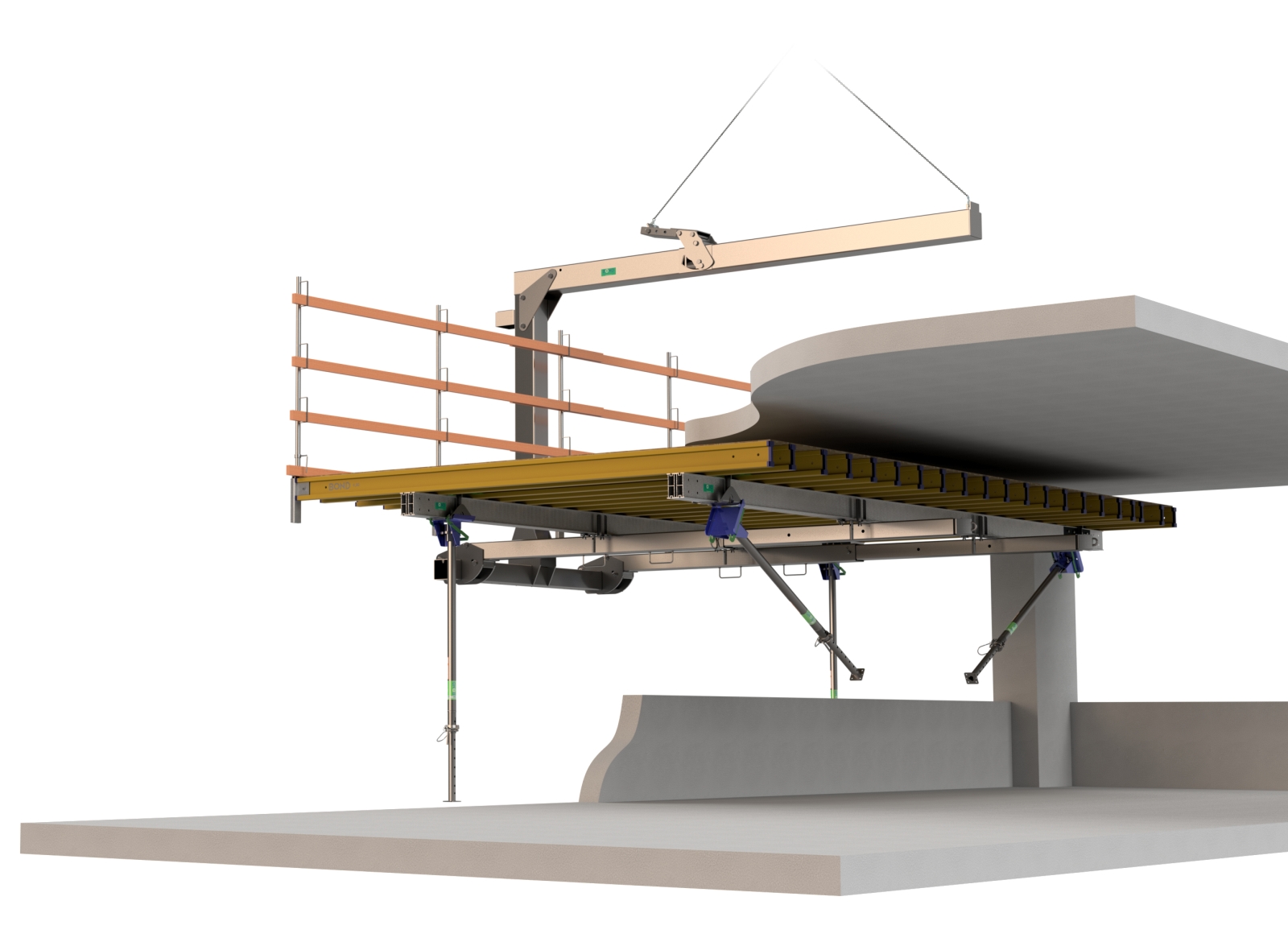

1.75-Ton EXTRA-WIDE Lifting Fork – Every table is designed to be safely lifted and cycled to the next level using our extra wide 1.75-Ton adjustable Lifting Fork, making vertical shoring transitions smooth and time-efficient.
Safe Table Design

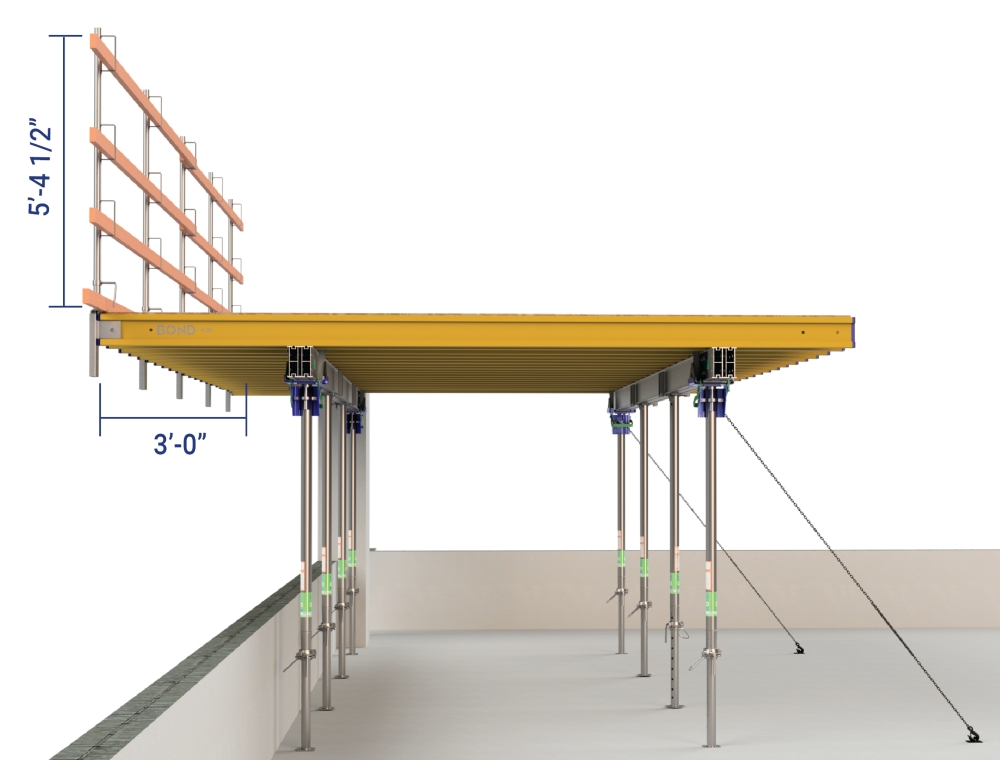

Engineered for Safety – Safety is integrated into every Swivel MAX Table on the active shoring level and the stripping level below.
Adaptive Design – Integrated working platforms, walkways, and perimeter handrails remain securely in place throughout the stripping and table setting process to the next floor ensuring a safe and code-compliant jobsite.
100% Safe at the Perimeter – Safety handrails on the stripping floor never need to be lowered when stripping or removed, to fly out tables, thanks to hinging props. This ensures 100% safety for contractors at all times at the perimeter of the building.
